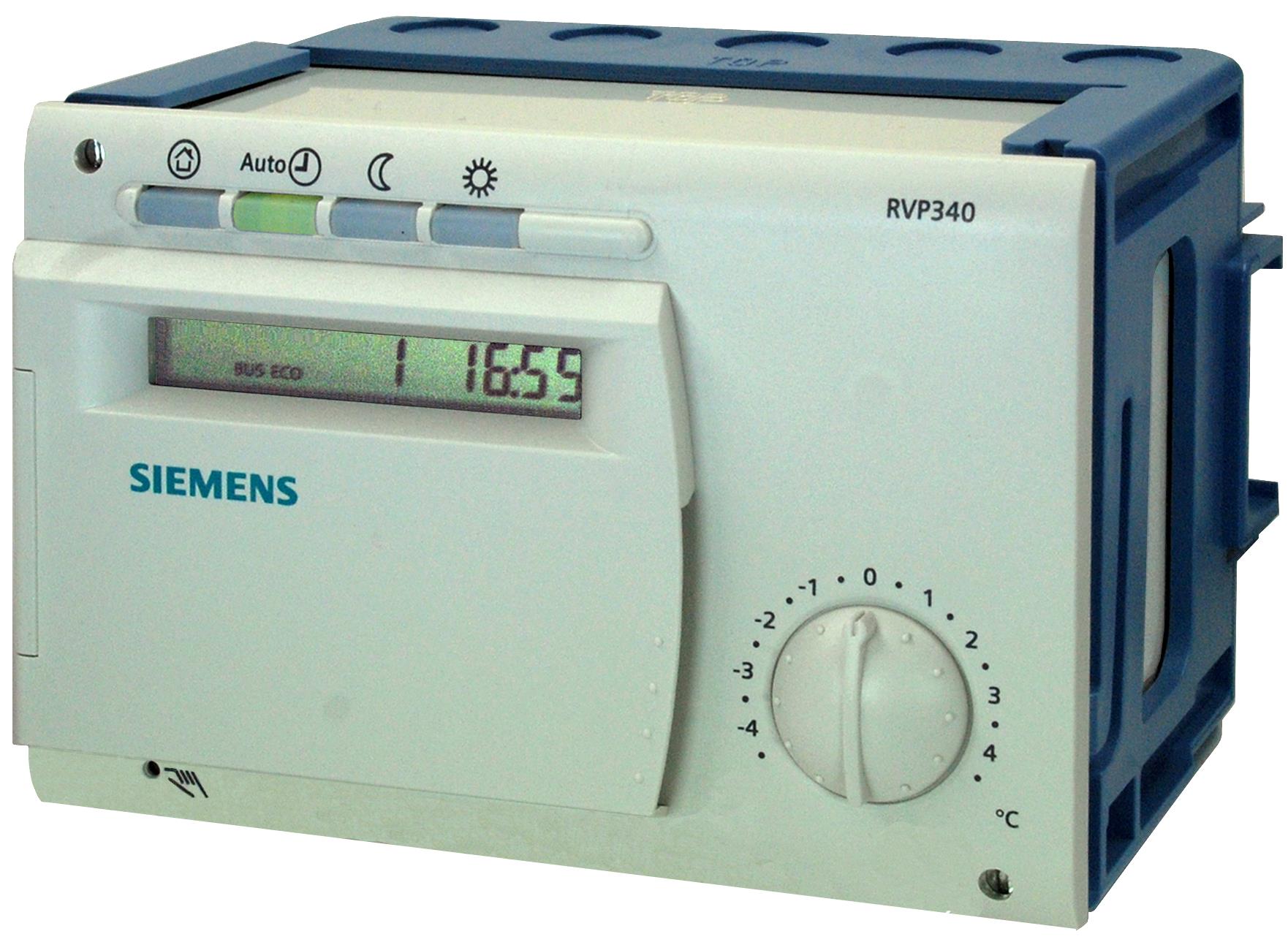

RVP340 Контролер опалення, 1 контур

Weather-compensated flow temperature control of heating circuit with or without room influence.

Key functions:

• 2 preprogrammed plant types can be selected, with automatic assignment of the functions required for each plant type
• Weather-compensated flow temperature control through control of valve (mixing) in a heating circuit
• Weather-compensated flow temperature control through control of the 2-port valve in the primary return of a heating circuit with district heat connection (substation)

Additional functions
The RVP340 provides the following functions (no submodules or extra devices required):

• Optimum start / stop
• Quick setback and boost heating
• Automatic ECO function, depending on the outside temperature and the type of building construction
• One 7-day program with 3 heating periods per day
• Yearly time program for holidays
• Digital setting of the heating curve
• Pump kick and pump overrun
• Minimum and maximum limitation of the flow temperature
• Multifunctional outputs
• Digital input for remote control of operating mode
• Communication with other controllers via LPB data bus (RVP3.., RVL4.. and RVD2..)
