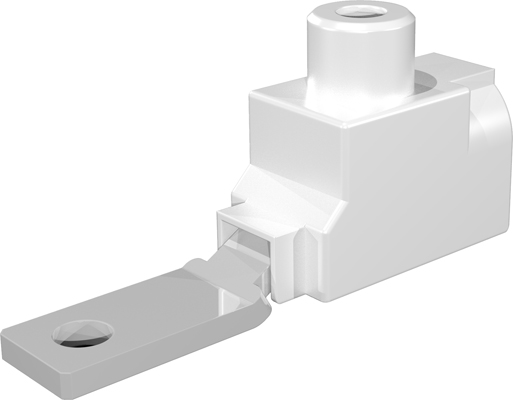

806-040 Feed-in terminal long shield with clamp screw
Код товара: 134014
Ціна за запитом
The feed-in terminal for busbars of NH fuse switch disconnectors with high shield for NH00 is mounted by clamp screw Ø 8,5. The connection lug is 17.5 x 23 mm (SW6) large. The connecting cross sections are 25 – 95sqmm (single-/multi-wire) and 25 – 70sqmm (with sleeve). The terminals is for both, aluminium and copper cable compatible. The maxiumum current ist 250A with a maxiumum voltage of 690V AC / 1000V DC. The conductor must be inserted lengthwise., eng
| Виробник |
|---|
The feed-in terminal for busbars of NH fuse switch disconnectors with high shield for NH00 is mounted by clamp screw Ø 8,5. The connection lug is 17.5 x 23 mm (SW6) large. The connecting cross sections are 25 – 95sqmm (single-/multi-wire) and 25 – 70sqmm (with sleeve). The terminals is for both, aluminium and copper cable compatible. The maxiumum current ist 250A with a maxiumum voltage of 690V AC / 1000V DC. The conductor must be inserted lengthwise., eng
International product number (GTIN): 4018841996679
Universal product code (UPC):
Alternative product number: 806/040
Product ID of the manufacturer: K00 0806-040
Manufacturer type description: K00 0806-040
Ключові слова: feed-in terminal NH fuse NH fuse switch disconnector Terminal for NH fuse 3 pole NH fuse switch disconnector ftg
Special product status:
Classification system: ETIM-7.0
Group reference: EC001659
