72003801 GEOS NS35/15-450
Код товара: 89813
Ціна за запитом
Standard rail
| Виробник |
|---|

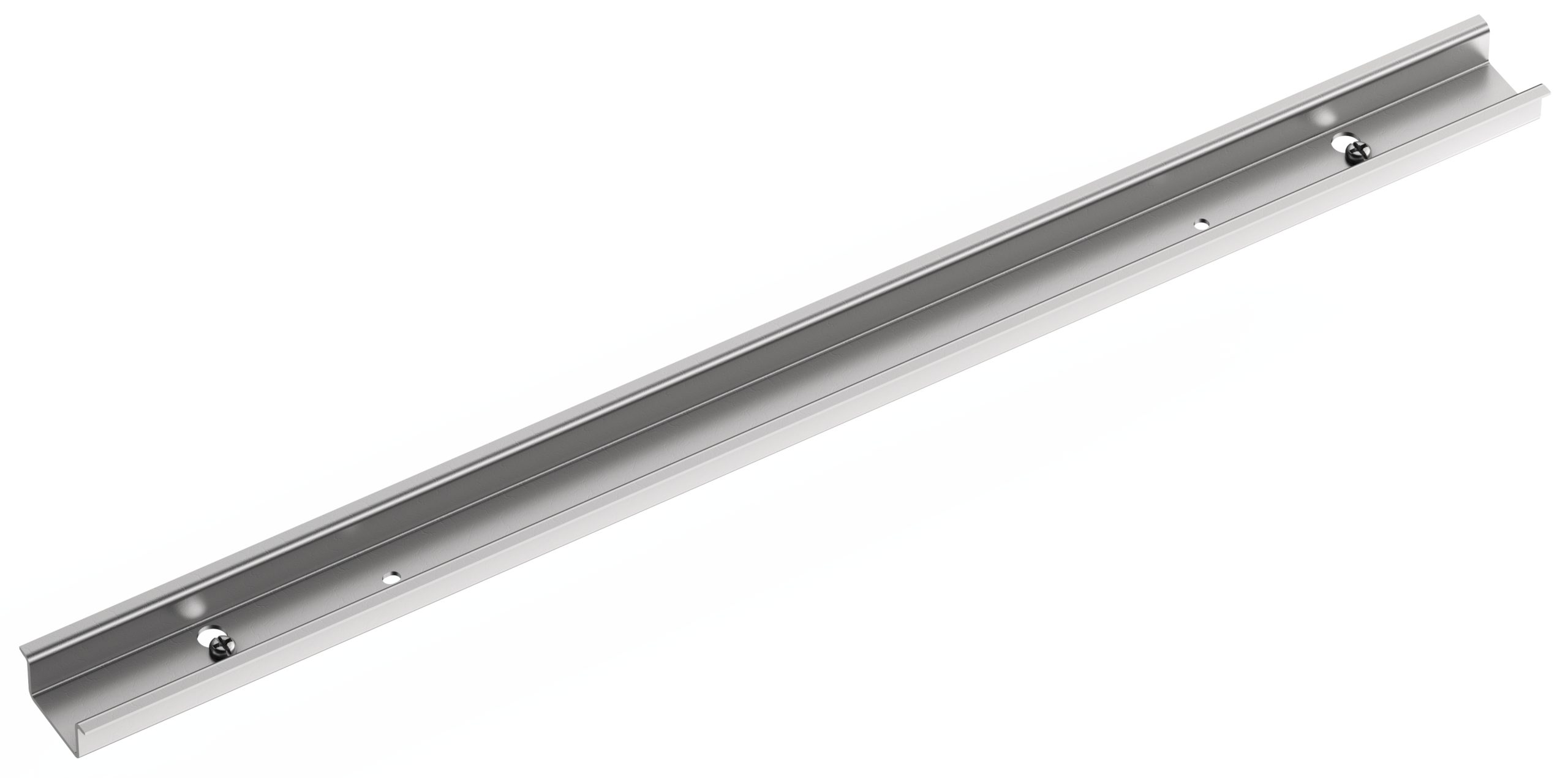

Standard rail in accordance with DIN EN 60715, 35mm width, height 7.5 and 15mm, including fixing screws, for floor mounting, optional assembly by means of assembly brackets at different heights possible, for GEOS-L/S 4050, GEOS-S 5040, length 450mm, height 15mm
Dimensions: 35 x 450 x 15mm
International product number (GTIN): 4013902640287
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 72003801
Manufacturer type description: GEOS NS35/15-450
Ключові слова: GEOS, GEOS, Normschiene, Standard rail, Zubehör, Accessories, , , ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC001285
