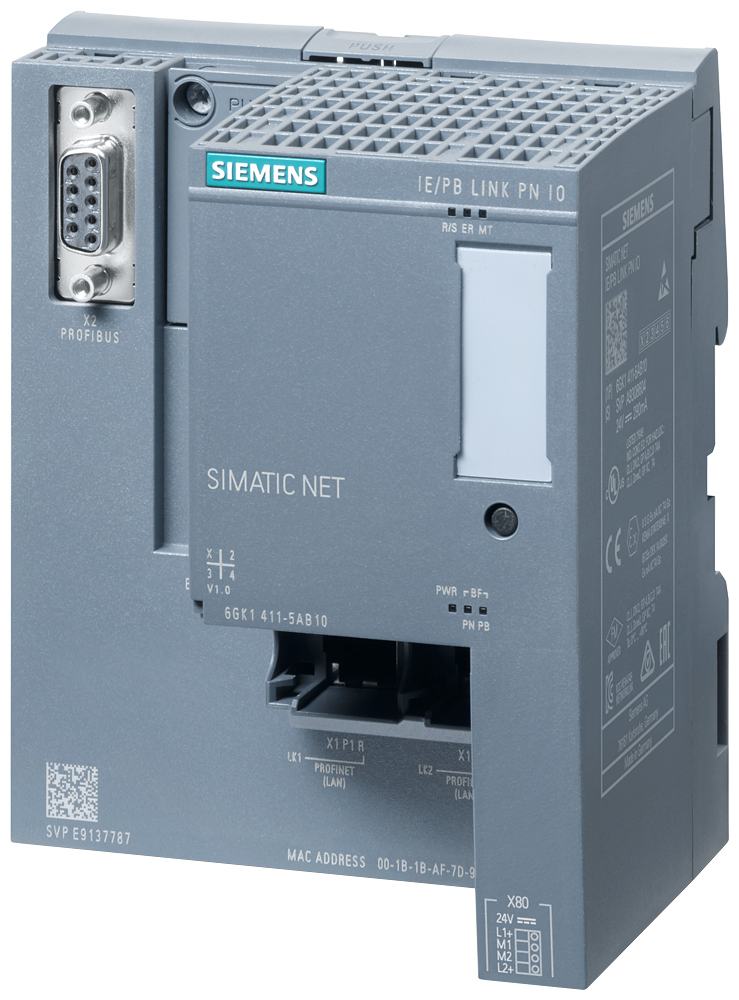

6GK1411-5AB10 IE/PB LINK PN IO
Код товара: 283380
Ціна за запитом
IE/PB LINK PN IO, gateway between IE and PROFIBUS, with PN IO functionality
| Виробник |
|---|
IE/PB link PN IO, gateway between Industrial Ethernet and PROFIBUS, PROFINET IO proxy with real-time communication, time-of-day synchronization via SIMATIC processes, NTP, SNMP v1, LLDP, S7 routing, data record routing, connection of up to 64 S7/DPV0/DPV1 slaves, support of DP/PA link and DP/FF link, 10/100 Mbit/s fast Ethernet, MRP, 9.6 Kbit/s up to 12 Mbit/s PROFIBUS, firmware loading via configuration tool, redundant power supply, firmware version V4.0. IE/PB LINK PN IO, gateway between Industrial Ethernet and PROFIBUS, PROFINET IO proxy with real-time communication, time synchronization via SIMATIC method, NTP, SNMP V1, LLDP, S7 routing, data record routing, connection of up to 64 S7/DPV0/DPV1 slaves, support of DP/PA LINK and DP/FF LINK, 10/100 Mbps Fast Ethernet, MRP, 9.6 kbps to 12 Mbps PROFIBUS, firmware download via configuration tool, redundant power supply, firmware version V4.0.
International product number (GTIN): 4047622155486
Universal product code (UPC): 804766358166
Alternative product number: 6GK1411-5AB10
Product ID of the manufacturer: 6GK14115AB10
Manufacturer type description: IE/PB LINK PN IO
Ключові слова: SIMATIC NET, Industrial Ethernet, PROFIBUS, PROFINET IO, realtime, isochronous real-time, RT, IRT, C-PLUG, IE PB Link
Special product status:
Classification system: ETIM-7.0
Group reference: EC001423
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
