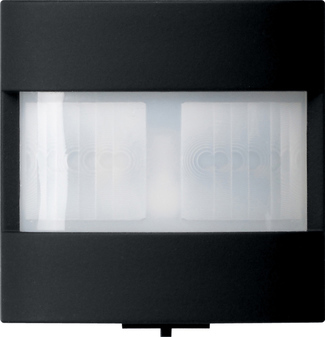

Накладка датчика руху Komfort BT S3000 1,1м System 55, чорний матовий
Код товара: 127344
11320,50 грн з ПДВ
System 3000 motion detector top unit 1.10 m Komfort BT black matt (lacquered) System 55 – Automatic switching of lighting, depending on the movement of heat and ambient brightness. – Operation with System 3000 switching or dimming insert or 3-wire auxiliary insert. – Expansion of the detection range in combination with the 3-wire auxiliary insert. – If a System 3000 auxiliary insert with operating top unit or mechanical button is connected to the main unit, the lighting can be switched on or dimmed for the duration of the delay time. – Device facilitates manual switchover between automatic, always-on and always-off. With System 3000 switching insert: – Short-term operation With System 3000 dimming insert: – Switch on with the last brightness set, or a saved switch-on brightness. – The switch-on brightness can only be saved permanently via the System 3000 auxiliary insert with operating top unit. – Basic light function. – Night light function. Functions with the Gira System 3000 app: – Set the brightness threshold. – Individually adjustable sensitivity of the two sensors (0, 25, 50, 75, 100 %). – Set the delay time. – Override functions: Automatic mode, permanently on/off, time-limited on/off for 0.5 to 5 hours. – Presence simulation. – Switch-off pre-warning. – Day mode. – Walking test. – Time-switch function. – Alarm function. The detection field has a horizontal alignment and may not find a limit when used outdoors. For this reason, ensure that the installation location is suitable for outdoor use or use the 2.20 m motion detector top unit. Clip-on screen to limit the detection range is included in the scope of delivery.
| Виробник |
|---|
System 3000 motion detector top unit 1.10 m Komfort BT black matt (lacquered) System 55 – Automatic switching of lighting, depending on the movement of heat and ambient brightness. – Operation with System 3000 switching or dimming insert or 3-wire auxiliary insert. – Expansion of the detection range in combination with the 3-wire auxiliary insert. – If a System 3000 auxiliary insert with operating top unit or mechanical button is connected to the main unit, the lighting can be switched on or dimmed for the duration of the delay time. – Device facilitates manual switchover between automatic, always-on and always-off. With System 3000 switching insert: – Short-term operation With System 3000 dimming insert: – Switch on with the last brightness set, or a saved switch-on brightness. – The switch-on brightness can only be saved permanently via the System 3000 auxiliary insert with operating top unit. – Basic light function. – Night light function. Functions with the Gira System 3000 app: – Set the brightness threshold. – Individually adjustable sensitivity of the two sensors (0, 25, 50, 75, 100 %). – Set the delay time. – Override functions: Automatic mode, permanently on/off, time-limited on/off for 0.5 to 5 hours. – Presence simulation. – Switch-off pre-warning. – Day mode. – Walking test. – Time-switch function. – Alarm function. The detection field has a horizontal alignment and may not find a limit when used outdoors. For this reason, ensure that the installation location is suitable for outdoor use or use the 2.20 m motion detector top unit. Clip-on screen to limit the detection range is included in the scope of delivery.
International product number (GTIN): 4010337049531
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 5374005
Manufacturer type description: 5374005
Ключові слова: Bewegungsmelder Komfort Automatikschalter Bluetooth® 1,10 m Aufsatz motion detector Komfort automatic control switch Bluetooth®
Special product status:
Classification system: ETIM-8.0
Group reference: EC000138
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
