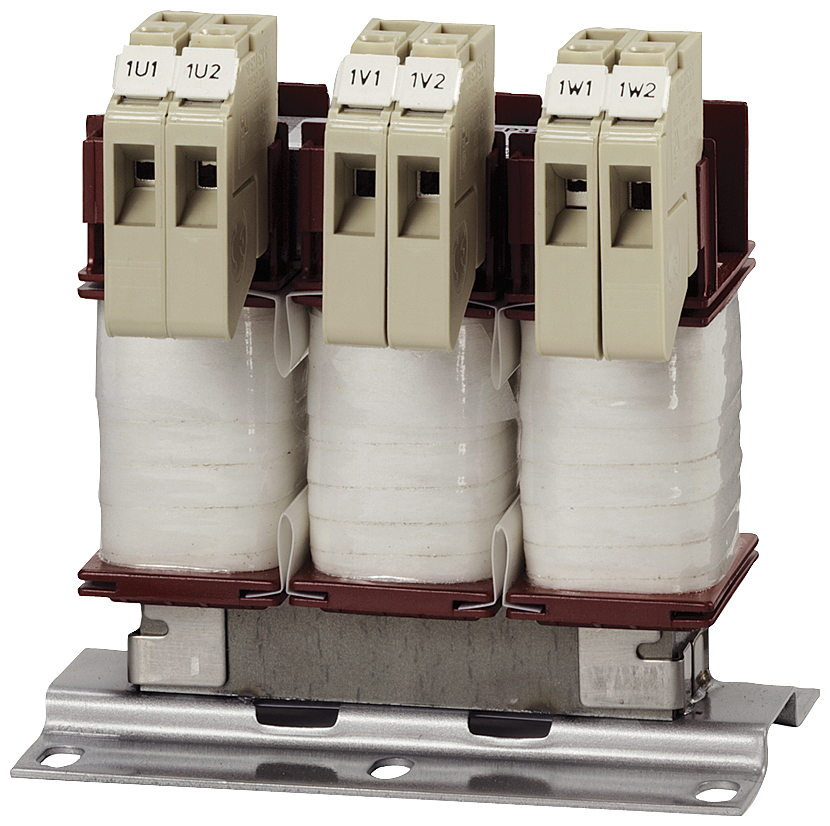

4EP3701-8DS00 COM CHK 3AC400V 50HZ 35,5A UK4%
Код товара: 517259
70061,25 грн з ПДВ
Line reactor, 3-ph., UN1(V) 400, Ithmax 1(A)/F1(Hz):35.5/50
| Виробник |
|---|
COMMUTATING CHOKE FOR CONVERTER; PHASES:3; UN1(V):400; ITHMAX 1(A) / F1(HZ):35,5 /50; I LN (A):31,9; UK(%):4; LN(MH):0,622; TA/ISOKL:40 /B; IP00; TYPE OF TERMINALS:SCREW CONNECTION; EN 61558-2-20 >UL/CSA-RECOGNIZED< >CHOKE< The 4EM single-phase reactors and 4EP three-phase reactors are designed as commutation reactors in combination with frequency converters and DC choppers and they reliably reduce conducted system interference of these loads.
International product number (GTIN): 4001869937724
Universal product code (UPC):
Alternative product number: 4EP3701-8DS00
Product ID of the manufacturer: 4EP37018DS00
Manufacturer type description: COM CHK 3AC400V 50HZ 35,5A UK4%
Ключові слова: Coil for low-voltage, , , , , , , , ,
Special product status:
Classification system: ETIM-8.0
Group reference: EC002563
