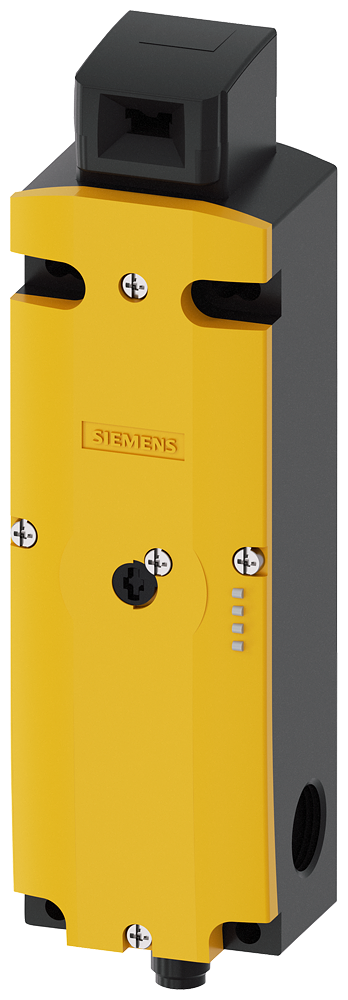

3SF1324-1SG21-1BA4 POS.SW.WITH INTEGR.ASISAFE ELECT…

safety position switch with tumbler, locking force 1300 N, 5 directions of approaches, plastic enclosure, M12 plug, ASIsafe integrated, channel 1=actuator 2 NC according to principle of 2v2 evaluation channel 2=magnet 1 NC, spring-locked, escape release at the rear and auxiliary release on front, magnet voltage 24 V AC/DC; no additional 24 V supply required. monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO the matching separate actuator 3SE5000-0AV0./-0AW5. must be ordered separately. Mechanical safety switches SIRIUS 3SF13 for position monitoring of movable protective devices with direct connection to the AS-interface bus system.Thanks to their integrated ASIsafe electronics, which require only minimal current, the mechanical safety switches have a compact design. 3D-coded actuators guarantee strong protection against manipulation. Two LEDs indicate the current state of the device. The switches can be used for the highest safety requirements specified by PL e or SIL 3. Device versions are also available with a high IP69K degree of protection.Various enclosure sizes are available in plastic or metal. In addition, versions are available with separate actuator with tumbler, or as a safety hinge switch. The portfolio is completed by a series of devices with IP69K degree of protection.Depending on the design, actuator heads, separate actuators, plug-in connectors and other mounting/connection accessories are available.Safety is a SIRIUS business.
