26202001 BST M20/sw
Код товара: 88564
Ціна за запитом

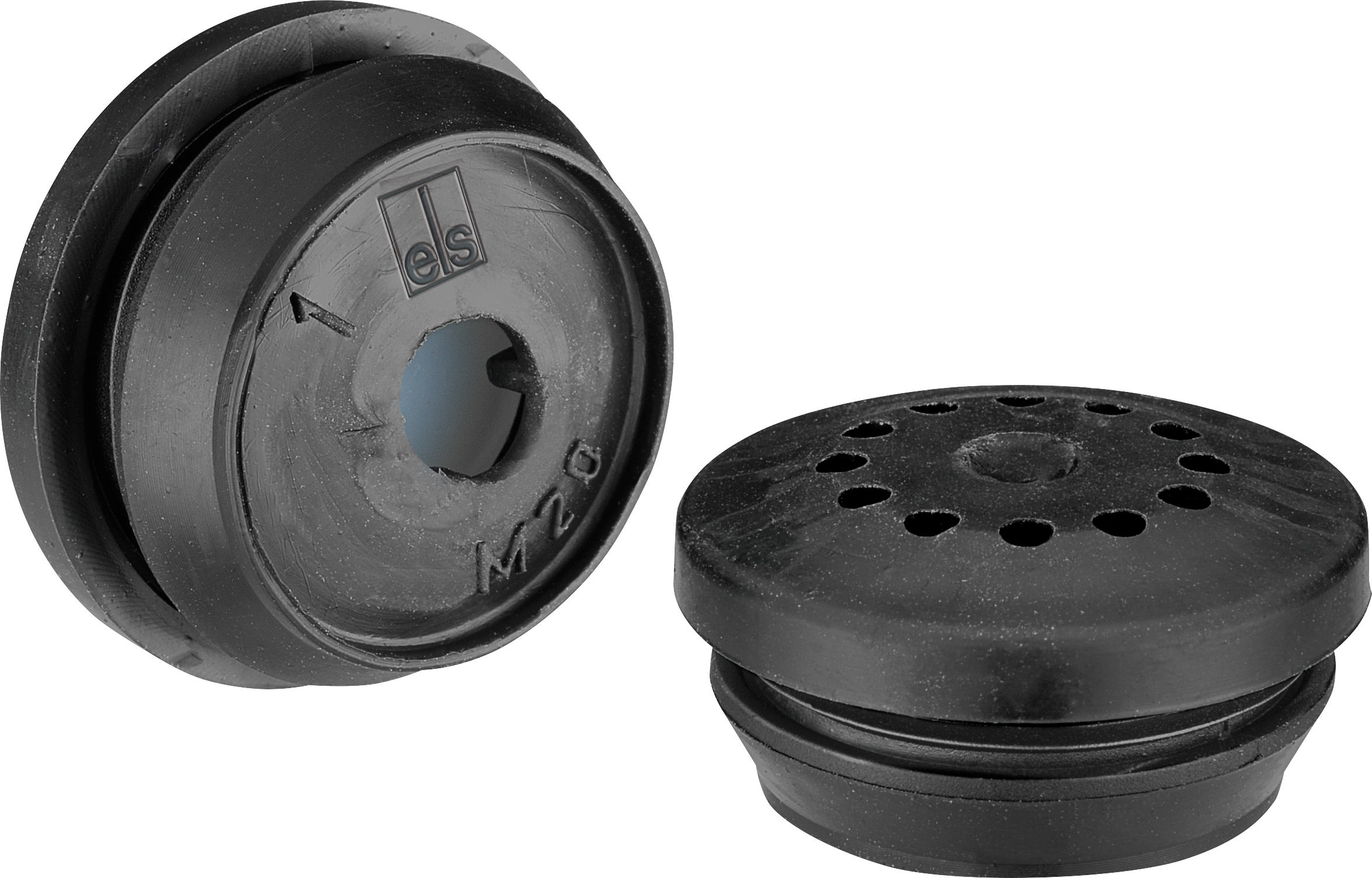

Ventilation seal, grey, deep black, Type of protection IP44, Halogen free
| Виробник |
|---|
Ventilation Plug, IP44, with labyrinth seal to avoid condensation formation in enclosures, flow rate 100 l/min. at 0.1 bar overpressure, thermoplastic elastomer, recommended for insertion on the left and right enclosure sides in different heights (see Technical Appendix-protection against condensate water), for wall thicknesses 1.5-4.5mm, Black
Dimensions: 25,2 x 11,9 x 25,2mm
International product number (GTIN): 4013902587087
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 26202001
Manufacturer type description: BST M20/sw
Ключові слова: Kondenswasser, Condensation, Kondensat, Condensate, Stutzen, nozzle, Stopfen, Plug, Entlüftungsstopfen, Venting seal
Special product status:
Classification system: ETIM-9.0
Group reference: EC000451
