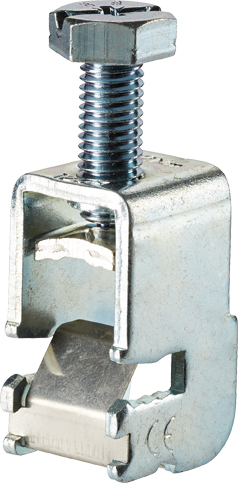

BKN12005 Bow terminal BKN 120sqmm for 5mm for copper or aluminium bars
Код товара: 136452
173,45 грн з ПДВ
The steel terminal BKN is for 5mm copper busbars or tinned aluminum busbars or cables. With the cross section of 120sqmm, conductors (single / multi-wire or with wire end sleeve) of 16 – 120sqmm and sector conductors of 35 – 120sqmm can be connected. The connection screw is SW 17 or PZ3 with a tightening torque of 22Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 1 x (10 x 15.5 x 0.8) or 1 x (6 x 20 x 1) with a max. Current 440A and max. Voltage 1000V AC / DC., eng
| Виробник |
|---|
The steel terminal BKN is for 5mm copper busbars or tinned aluminum busbars or cables. With the cross section of 120sqmm, conductors (single / multi-wire or with wire end sleeve) of 16 – 120sqmm and sector conductors of 35 – 120sqmm can be connected. The connection screw is SW 17 or PZ3 with a tightening torque of 22Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 1 x (10 x 15.5 x 0.8) or 1 x (6 x 20 x 1) with a max. Current 440A and max. Voltage 1000V AC / DC., eng
International product number (GTIN): 4018841969109
Universal product code (UPC):
Alternative product number: K00 BKN12005
Product ID of the manufacturer: BKN12005
Manufacturer type description: K00 BKN12005
Ключові слова: Bow terminal steel terminal ftg steel terminal ftg bow terminal steel terminal ftg terminal steel connecting terminal cu bar terminal ftg
Special product status:
Classification system: ETIM-7.0
Group reference: EC000001
